Unison Source Separation

Abstract

In this work we present a new scenario of analyzing and separating linear mixtures of musical instrument signals. When instruments are playing in unison, traditional source separation methods are not performing well. Although the sources share the same pitch, they often still differ in their modulation frequency caused by vibrato and/or tremolo effects. In this paper we propose source separation schemes that exploit AM/FM characteristics to improve the separation quality of such mixtures. We show a method to process mixtures based on differences in their amplitude modulation frequency of the sources by using non-negative tensor factorization. Further, we propose an informed warped time domain approach for separating mixtures based on variations in the instantaneous frequencies of the sources.

Unison Scenario

  • In most scenarios for source separation of instrument signals spectral harmonics do only partially overlap.
  • Proposed scenario: Linear musical instrument mixtures which overlap in time and frequency
  • Challenging, because typical NMF based algorithms have problems with time-variant sounds.

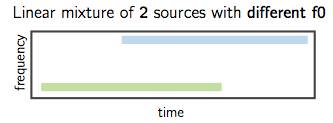

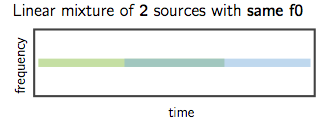

scenario1 scenario2

Main Contributions

  • Separation of overlapping partials based on differences in AM and/or FM, caused by vibrato/tremolo.
  • Adjusting existing method based on AM to unison scenario: Blind method based on decomposing an AM tensor [3].
  • New method based on FM: Uses an estimate of the pitch variation of the two input sources to warp the mixture.

Results

Test set

  • 45 unique mixtures
  • 2 instruments playing unison
  • Pitch at C4
  • 44.1 kHz / 16 bit
  • Rendered by proprietary sampling software
Instrument Vibrato General Midi ID
Violin yes 40
Viola yes 41
Violon Cello yes 42
Trumpet no 56
Horn no 60
Bariton Sax yes 67
Oboe no 68
Clarinet no 71
Flute yes 73

Overall results

  • “Oracle” separation with supervised learning phase where we had access to the original sources individually.
  • Learning spectral, temporal (for NMF), and modulation gain components (for MOD- NTF) and concatenated them.
  • This way maximum possible quality for each algorithm is achieved.
Evaluation Measure / Algorithm NMF PVI-NMF MOD-NTF
Overall Perceptual Score (OPS) 15.76 17.64 17.35
Target-related Perceptual Score (TPS) 30.17 32.80 34.03
Interference-related Perceptual Score (IPS) 26.07 27.03 22.73
Artifacts-related Perceptual Score (APS) 46.14 54.74 46.06
Signal to Distortion Ratio (SDRi) 2.96 2.54 2.20
Source to Interference Ratio (SIRi) 2.31 1.80 3.13
Sources to Artifacts Ratio (SARi) 22.87 23.35 26.09

Selected Audio Examples

NMF and NTF Factorisations are processed into k=4 components.

Viola + Violon Cello

Viola + Trumpet

Trumpet + Trombone

Trumpet + Bariton Sax

Bariton Sax + Oboe
