Contents

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% Name: test_compute_cyclicTempogram_fourier.m
% Date of Revision: 2011-10
% Programmer: Peter Grosche
% http://www.mpi-inf.mpg.de/resources/MIR/tempogramtoolbox/
%
% Description: Illustrates the following steps:
%   1. loads a wav file
%   2. computes a novelty curve
%   3. computes a fourier-based tempogram
%   4. derives a cyclic tempogram
%   5. visualizes the cyclic tempogram
%
% Audio recordings are obtained from: Saarland Music Data (SMD)
% http://www.mpi-inf.mpg.de/resources/SMD/
%
% License:
%     This file is part of 'Tempogram Toolbox'.
%
%     'Tempogram Toolbox' is free software: you can redistribute it and/or modify
%     it under the terms of the GNU General Public License as published by
%     the Free Software Foundation, either version 2 of the License, or
%     (at your option) any later version.
%
%     'Tempogram Toolbox' is distributed in the hope that it will be useful,
%     but WITHOUT ANY WARRANTY; without even the implied warranty of
%     MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
%     GNU General Public License for more details.
%
%     You should have received a copy of the GNU General Public License
%     along with 'Tempogram Toolbox'. If not, see
%     <http://www.gnu.org/licenses/>.
%
% Reference:
%   Peter Grosche, Meinard Müller, and Frank Kurth
%   Cyclic Tempogram - A Mid-level Tempo Representation For Music Signals
%   Proceedings of IEEE International Conference on Acoustics, Speech, and Signal Processing (ICASSP), Dallas, Texas, USA, 2010.
%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

clear
close all



dirWav = 'data_wav/';

filename = 'Debussy_SonataViolinPianoGMinor-02_111_20080519-SMD-ss135-189.wav';

1., load wav file, automatically converted to Fs = 22050 and mono

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

[audio,sideinfo] = wav_to_audio('',dirWav,filename);
Fs = sideinfo.wav.fs;

2., compute novelty curve

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

parameterNovelty = [];

[noveltyCurve,featureRate] = audio_to_noveltyCurve(audio, Fs, parameterNovelty);

3., compute fourier-based tempogram (log tempo axis)

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

octave_divider =  30; %15, 30, 60 ,120

parameterTempogram = [];
parameterTempogram.featureRate = featureRate;
parameterTempogram.tempoWindow = 6;
parameterTempogram.BPM = 30*2.^(0:1/octave_divider:4); % log tempo axis

[tempogram, T, BPM] = noveltyCurve_to_tempogram_via_DFT(noveltyCurve,parameterTempogram);

4., derive cyclic tempogram

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%


parameterCyclic = [];
parameterCyclic.octave_divider = octave_divider;

[cyclicTempogram, cyclicAxis] = tempogram_to_cyclicTempogram(tempogram, BPM, parameterCyclic);
cyclicTempogram = normalizeFeature(cyclicTempogram,2, 0.0001);

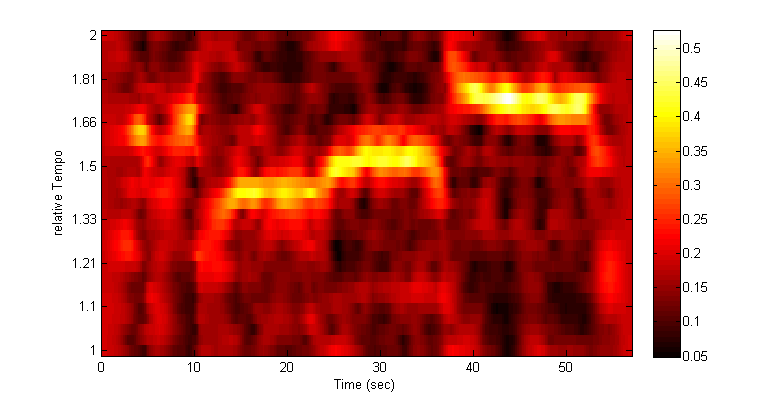

5., visualize

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%


visualize_cyclicTempogram(cyclicTempogram,T)
